20411 Metrica Male 24° Cone O-Ring L.T.Din3865

Product Description
Product name: Metric Female 24° Cone O-Ring L. T. Stainless Steel Pipe Fitting (20411)
1. Rudis Material: Carbon Steel & Diver praesto
2. Latin Plating: Trivalent Cadmiae Plating (Cr3 / Chrome Free), Silver & Flavus
3. Salis Spray Test: >72 Horae (Si mos altiorem postulationem habebit, etiam cum 200 Horis facere possumus)
4. Sarcina: Products tuta sunt pileis plasticis et in arca carbonis referta.
5. OEM Service: Available. Customers tantum opus est ut productum extractionem vel exempla praebeant.
6. Sample: Free sample.

Pete Pretium
PRIOR：10411 Metric Male 24° Cone Seat L.T.
PROXIMUS：20411C Metrica Male Multiseal L.T.
  • Specificatio
  • Contacta Nos
  • Latin: DIN, GB, JIS
    Materia: Diver
    Nexus: Male
    Curatio superficiei: Galvanized Sheet
    Caput Type: Hexagon
    HS; 73072900

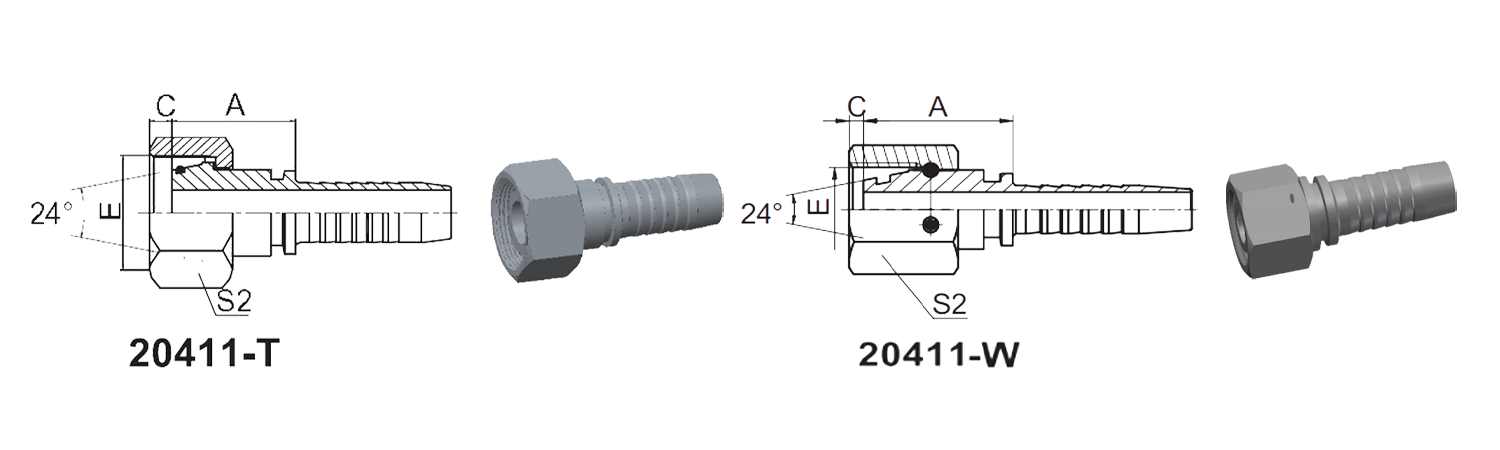

    PARS NO. FILUM E* HOSE BORE
    DN     		HOSE BORE
    IMPETUS     		TUBE O.D. O Ring DIMENSIONES
    A     		DIMENSIONES
    C     		DIMENSIONES
    S2
    20411-12-04 M12X1.5 6 04 6 O04.5X1.5 26 1 17
    20411-12-04W M12X1.5 6 4 6 O04.5X1.5 22.5 1.4 17
    20411-14-04T M14X1.5 6 04 8 O06.5X1.5 22.5 2 17
    20411-14-04W M14X1.5 6 4 8 O06.5X1.5 22.5 1.6 17
    20411-14-05 M14X1.5 8 05 8 O06.5X1.5 27.5 2 19
    20411-14-06 M14X1.5 10 06 8 O06.5X1.5 27.5 2 19
    20411-14-06W M14X1.5 10 6 8 O06.5X1.5 23 1.6 17
    20411-16-04T M16X1.5 6 4 10 O08.0X1.5 24 2 19
    20411-16-05T M16X1.5 8 05 10 O08.0X1.5 22 2 19
    20411-16-05W M16X1.5 8 5 10 O08.0X1.5 22 2 19
    20411-16-06 M16X1.5 10 06 10 O08.0X1.5 28 2 22
    20411-16-06W M16X1.5 10 6 10 O08.0X1.5 23.5 2 19
    20411-18-04T M18X1.5 6 04 12 O10.0X1.5 24.5 2.5 22
    20411-18-05T M18X1.5 8 5 12 O10.0X1.5 24.5 2.5 22
    20411-18-06T M18X1.5 10 6 12 O10.0X1.5 27.5 2.5 22
    20411-18-08 M18X1.5 12 08 12 O10.0X1.5 29.5 2.5 24
    20411-18-08W M18X1.5 12 8 12 O10.0X1.5 24.5 1.5 22
    20411-22-05T M22X1.5 8 5 15 O12.0X2.0 26.5 3 27
    20411-22-06T M22X1.5 10 6 15 O12.0X2.0 26.5 3 27
    20411-22-08T M22X1.5 12 8 15 O12.0X2.0 28 3 27
    20411-22-10 M22X1.5 16 10 15 O12.0X2.0 33 3 27
    20411-26-08T M26X1.5 12 8 18 O15.0X2.0 27.5 2 32
    20411-26-10T M26X1.5 16 10 18 O15.0X2.0 31 2 32
    20411-26-12 M26X1.5 20 12 18 O15.0X2.0 34.5 2.5 32
    20411-26-12W M26X1.5 20 12 18 O15.0X2.0 27.5 2 32
    20411-30-10T M30X2 16 10 22 O20.0X2.0 31 4 36
    20411-30-12T M30X2 20 12 22 O20.0X2.0 34 4 36
    20411-36-12T M36X2 20 12 28 O26.0X2.0 33 4.5 41
    20411-36-14T M36X2 22 14 28 O26.0X2.0 33 4.5 41
    20411-36-16T M36X2 25 16 35 O26.0X2.0 33 4.5 41
    20411-45-16T M45X2 25 16 35 O32.0X2.5 36.5 4 50
    20411-45-20T M45X2 32 20 35 O32.0X2.5 37.5 4 50
    20411-45-24 M45X2 40 24 35 O32.0X2.5 45.5 4 55
    20411-52-20T M52X2 32 20 42 O38.0X2.5 38.5 4 60
    20411-52-24T M52X2 40 24 42 O38.0X2.5 38 4 60
    Nota: 1. Ad usum tortis exercituum. 2. Si usus cum exercituum spiralibus, caligarum series congruens numerus est 20412-xx-xx.
