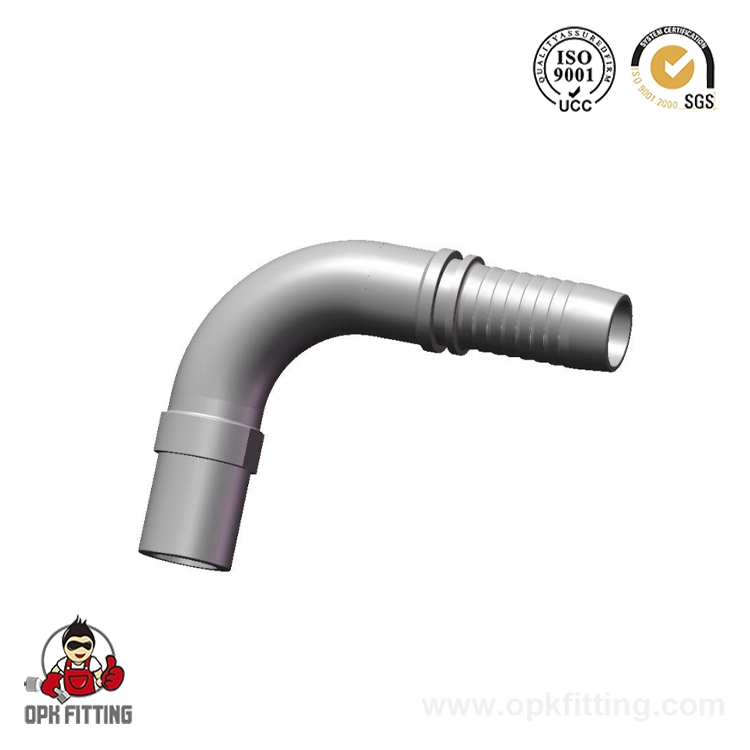

50091 90° Metric Standpipe Rectus DIN 2353

1. Rudis Material: Carbon Steel & Steel available
2. Plating Latin: Trivalent Cadmiae Plating (Cr3 / Chrome Free), Silver & Flavus
3. Salis Spray Test: > 72 Horae (Si mos altiorem postulationem habebit, etiam cum 200 Horis facere possumus)
4. Stipare: Producta tuta sunt pilleis plasticis et in arca carbonis referta.
5. OEM Service: Praesto. Lorem tantum opus est ut productum extractionem vel exempla praebeant.
6. Sample: Please contact our sales person for the free sample.

Pete Pretium
PRIOR：50011 DIN 2353
PROXIMUS：51011 GB Metric Standpipe
  • Specificatio
  • Contacta Nos

  • PARS NO. TUBE O.D. HOSE  BORE
    DN     		HOSE  BORE
    IMPETUS     		DIMENSIONES
    A     		DIMENSIONES
    C     		DIMENSIONES
    H     		NOTA
    50091-06-03 6 05 03 26.5 22 42.5 L
    50091-06-04 6 6 04 30 22 45.5
    50091-08-05 8 8 05 33 24 50.5
    50091-08-06 8 10 06 35.3 24 52.8
    50091-10-05 10 8 05 33 23 49.5
    50091-10-06 10 10 06 35.3 23 51.8
    50091-12-06 12 10 06 35.3 25 53.8
    50091-12-08 12 13 08 41 25 59
    50091-15-06 15 10 06 35.3 25 53.8
    50091-15-08 15 13 08 41 25 59
    50091-18-08 18 13 08 41 26 60
    50091-18-10 18 16 10 56 26 64.5
    50091-22-10 22 16 10 56 28 66.5
    50091-22-12 22 19 12 65.5 28 76
    50091-22-16 22 25 16 76.7 28 81.5
    50091-28-16 28 25 16 70.5 30 90.0
    50091-35-20 35 32 20 93 36 100.5
    50091-08-04 8 6 04 30 24 47.5 S
    50091-10-04 10 6 04 30 26 49.5
    50091-12-04 12 6 04 30 26 49.5
    50091-12-05 12 8 05 33 26 52.5
    50091-14-06 14 10 06 35.3 29 57.8
    50091-14-08 14 13 08 41 29 63
    50091-16-08 16 13 08 41 30 64
    50091-16-10 16 16 10 56.5 30 68.5
    50091-20-10 20 16 10 56 36 74.5
    50091-20-12 20 19 12 65.5 36 84
    50091-25-12 25 19 12 65.5 40 88
    50091-25-16 25 25 16 76.7 40 93.5
    50091-30-16 30 25 16 78 40 109.5
    50091-30-20 30 32 20 91.5 44 108.5
    50091-38-16 38 25 16 76.7 50 115.5
    50091-38-20 38 32 20 91.5 50 114.5
    Nota: 1. Ad usum tortis exercituum.
    2. Si usus cum exercituum spiralibus, caligarum series congruens numerus est 50092-xx-XX.
