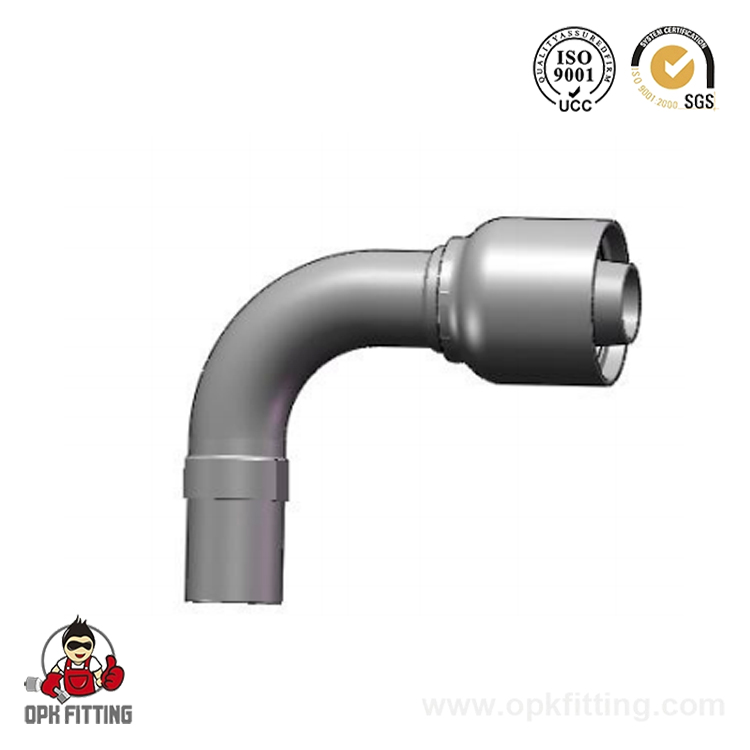

50091-RW 90° Metric Standpipe Rectus DIN 2353

1. Rudis Material: Carbon Steel & Steel available
2. Plating Latin: Trivalent Cadmiae Plating (Cr3 / Chrome Free), Silver & Flavus
3. Salis Spray Test: > 72 Horae (Si mos altiorem postulationem habebit, etiam cum 200 Horis facere possumus)
4. Stipare: Producta tuta sunt pilleis plasticis et in arca carbonis referta.
5. OEM Service: Praesto. Lorem tantum opus est ut productum extractionem vel exempla praebeant.
6. Sample: Please contact our sales person for the free sample.

Pete Pretium
PRIOR：50011-RW Metric Standpipe Rectus DIN 2353
PROXIMUS：51011-RW GB Metric Standpipe
  • Specificatio
  • Contacta Nos

  • PARS NO. TUBE O.D. HOSE  BORE
    DN     		HOSE  BORE
    IMPETUS     		DIMENSIONES
    A     		DIMENSIONES
    C     		DIMENSIONES
    H     		NOTA
    50091-06-03RW 6 05 03 26.5 22 42.5 L
    50091-06-04RW 6 6 04 30 22 45.5
    50091-08-05RW 8 8 05 33 24 50.5
    50091-08-06RW 8 10 06 35.3 24 52.8
    50091-10-05RW 10 8 05 33 23 49.5
    50091-10-06RW 10 10 06 35.3 23 51.8
    50091-12-06RW 12 10 06 35.3 25 53.8
    50091-12-08RW 12 13 08 41 25 59
    50091-15-06RW 15 10 06 35.3 25 53.8
    50091-15-08RW 15 13 08 41 25 59
    50091-18-08RW 18 13 08 41 26 60
    50091-18-10RW 18 16 10 56 26 64.5
    50091-22-10RW 22 16 10 56 28 66.5
    50091-22-12RW 22 19 12 65.5 28 76
    50091-22-16RW 22 25 16 76.7 28 81.5
    50091-28-16RW 28 25 16 70.5 30 90.0
    50091-35-20RW 35 32 20 93 36 100.5
    50091-08-04RW 8 6 04 30 24 47.5 S
    50091-10-04RW 10 6 04 30 26 49.5
    50091-12-04RW 12 6 04 30 26 49.5
    50091-12-05RW 12 8 05 33 26 52.5
    50091-14-06RW 14 10 06 35.3 29 57.8
    50091-14-08RW 14 13 08 41 29 63
    50091-16-08RW 16 13 08 41 30 64
    50091-16-10RW 16 16 10 56.5 30 68.5
    50091-20-10RW 20 16 10 56 36 74.5
    50091-20-12RW 20 19 12 65.5 36 84
    50091-25-12RW 25 19 12 65.5 40 88
    50091-25-16RW 25 25 16 76.7 40 93.5
    50091-30-16RW 30 25 16 78 40 109.5
    50091-30-20RW 30 32 20 91.5 44 108.5
    50091-38-16RW 38 25 16 76.7 50 115.5
    50091-38-20RW 38 32 20 91.5 50 114.5
    Nota:1. Ad usum tortis exercituum.
    2. Si usus cum exercituum spiralibus, caligarum series congruens numerus est 50092-xx-XX.
